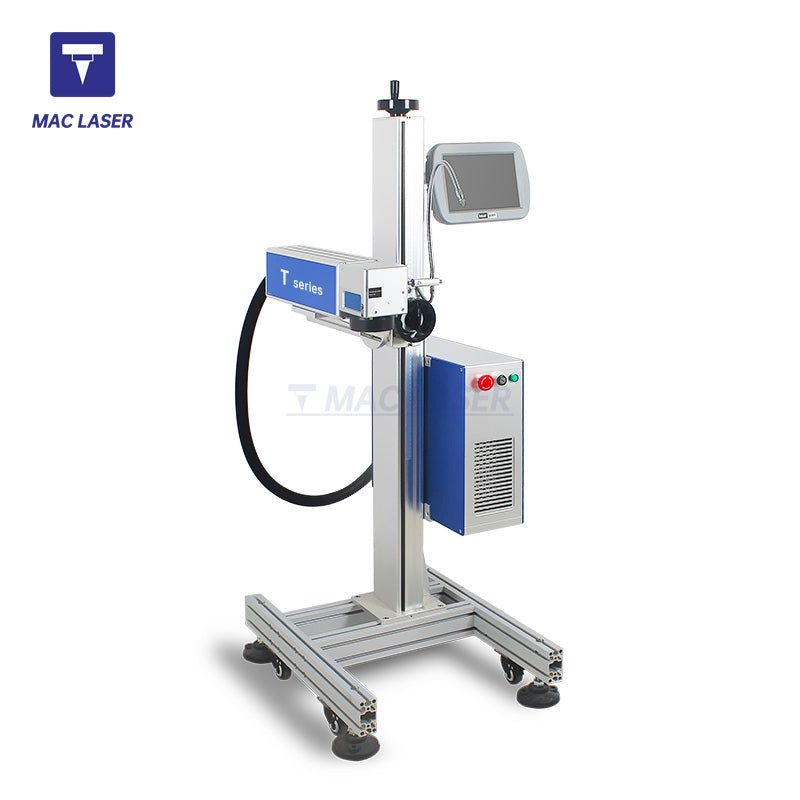

T Series Flying Laser Marking Machine

The T Series Flying Laser Marking Machine is a high-speed and precise marking solution designed for businesses that need to mark a large number of products quickly and accurately. It is incredibly versatile and can mark various materials, including metal, plastic, and wood.

The user-friendly interface ensures that even non-technical staff can use it with ease. The T Series Flying Laser Marking Machine is an excellent investment for businesses that want to improve their manufacturing processes’ efficiency and reduce costs.

Description

Edit

ADVANTAGES OF T SERIES FLYING LASER MARKING MACHINE

High productivity

Using online high-speed non-stop laser marking, high production efficiency, can work under static and high-speed flow of the production line

Cost-effective

The whole machine is small, flexible, convenient, powerful, and not limited by the use of space

Can be disassembled at will

Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will

High quality light source

Using advanced fiber lasers, the output beam quality is good and the reliability is high

Speed and Accuracy

The T Series Flying Laser Marking Machine is known for its speed and accuracy, and it can mark up to 10,000 products per hour with a high degree of precision. This feature makes it an ideal choice for businesses that require fast and accurate marking solutions. Whether you need to mark codes, logos, or any other type of information, the T Series Flying Laser Marking Machine will get the job done quickly and accurately.

Versatility and Flexibility

The T Series Flying Laser Marking Machine is incredibly versatile and flexible, allowing you to mark a wide range of materials, including metal, plastic, and even wood. This makes it an excellent choice for businesses that deal with multiple types of materials, as you won’t need to invest in separate marking machines for each material. With the T Series Flying Laser Marking Machine, you can quickly switch between materials, which saves time and money.

User-Friendly Interface

The T Series Flying Laser Marking Machine has an intuitive and user-friendly interface that makes it easy for even non-technical staff to use. The touch screen display is easy to navigate, and the software is straightforward to operate. This feature ensures that you won’t need to invest in extensive training programs for your employees, saving you time and money.

See for yourself and get a comprehensive test report.

Edit

TECHNICAL SPECIFICATIONS

ModelT200T201T300T301T500T501T700T701T1000
Laser parametersLaser sourcemodelMFP-20G/20XMFP-20WMFP-30XMFP-30WMFP-50XMFP-50WMAC-70MMFP-70WMFP-100W
Output Power18.5W20.5W30W30W50W50W70W70W100W
Beam quality M2≤1.4≤1.4≤1.4≤1.6≤1.6≤1.6≤1.6≤1.6≤1.2
Pulse repetition frequency27-60 kHz30-60 kHz30-60 kHz30-60 kHz50-170 kHz45-170 kHz50-170 kHz50-170 kHz20-200 kHz
Laser wavelength1064±5
Output power stability<3%
Working lifeAbout 100,000 working hours (non-lifetime)
Optical propertiesMarking range100~300mm (range optional)
Marking depth≤ 1mm (depending on power and time)
Marking speed≤ 10000 mm/s
Repetition accuracy±0.002
Minimum line width0. 1mm
Minimum character height0.15mm
EnvironmentCooling wayBuilt-in air cooling
System power supply500W/220V/50Hz (110V can be connected)
Temperature, humidity0 ~ 40 °, 30% RH 85%, air conditioner shall be installed when it is used beyond the range
Oil mist condensationNot Allowed
Other arametersOperating SystemFly control system
File FormatThe software supports text, Model serials T serial(MAX laser source) QR code, barcode, serial number, graphics and other marking content
Dimensions660X510X1460 mm
Packing sizeHost: 790X740X350mm Column: 1350X350X280mm
Total WeightAbout 66kg
Edit

INDUSTRIAL MARKING APPLICATIONS

MORE LASER PRODUCT OPTIONS

F series fiber flying laser marking machine (Germany IPG laser source)

The F series fiber flying laser printer is a high-speed continuous marking machine designed to improve productivity.

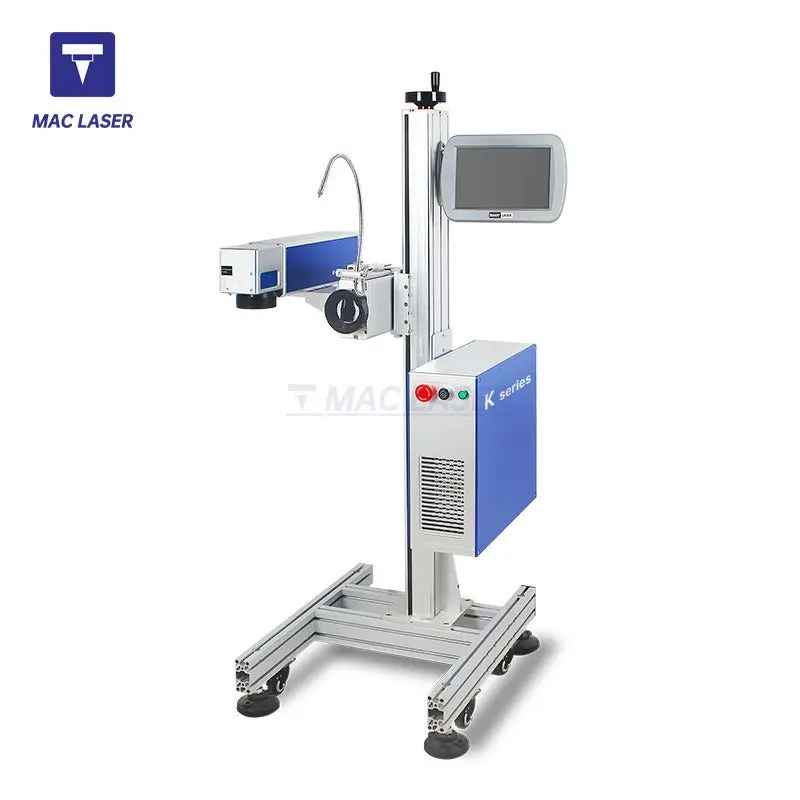

K series fiber flying laser marking machine (Raycus laser source)
