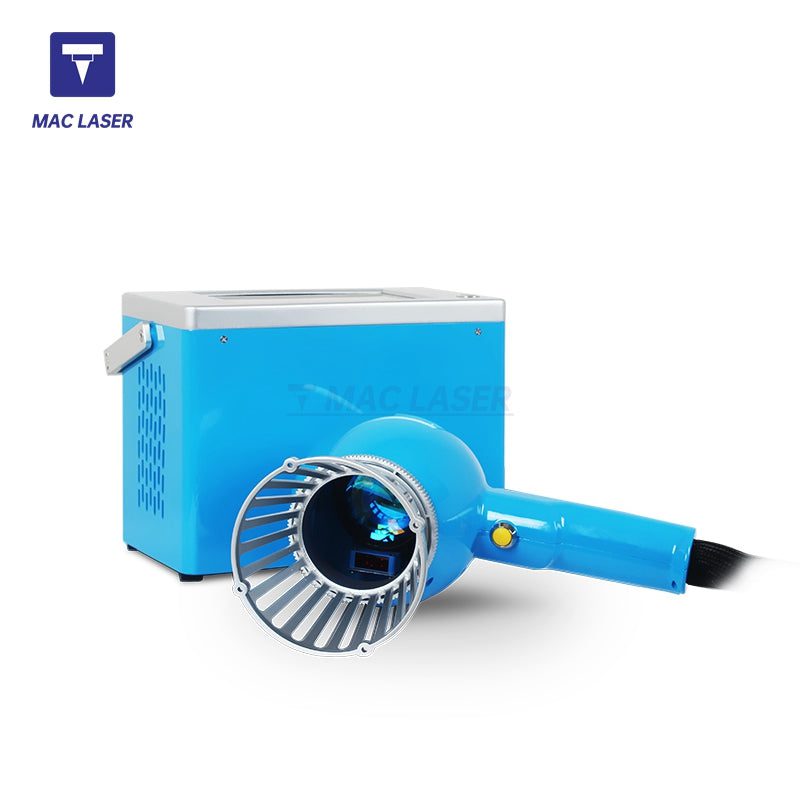

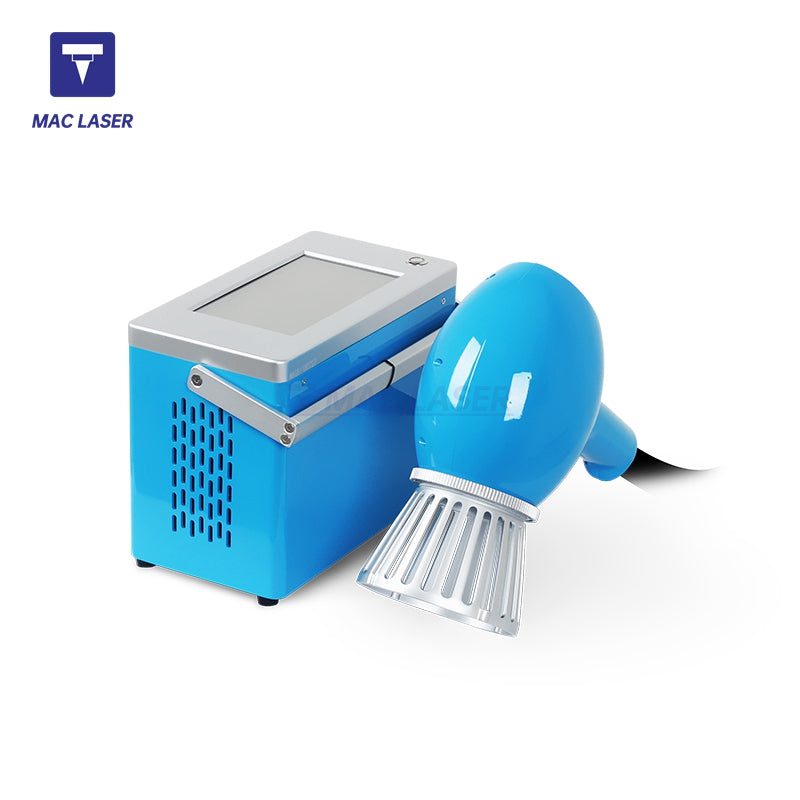

Q8 Model Handheld Laser Marking Machine

Discover the ultimate solution for your marking needs with the Q8 Model Handheld Laser Marking Machine. Its fiber laser technology allows for unmatched precision and speed, while its compact design and user-friendly software make it easy to use and maintain.



Description

Edit

THE ULTIMATE MARKING SOLUTION: Q8 MODEL HANDHELD LASER MARKER

Long battery life, 6-8 hours working time

24V lithium battery is used to realize complete wireless, and it can work for 6-8 hours under normal use, with strong battery life

The weight of the whole machine is 6KG, light and portable

Powerful and reliable, the weight of the whole machine is 6 kg, and its marking head is only 1.25 kg. It has an ergonomic grip, which is comfortable to hold and easy to operate.

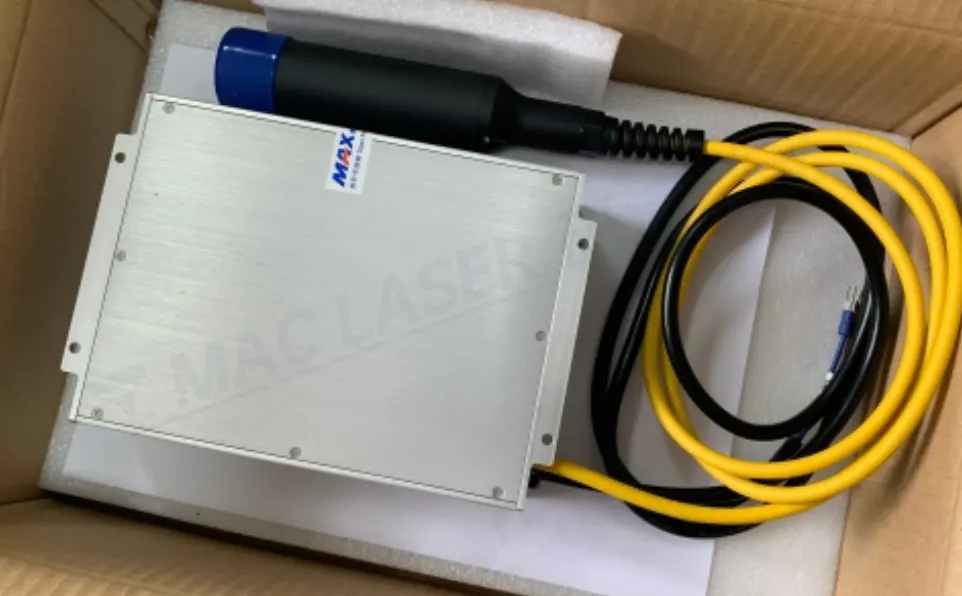

Advanced fiber optic 20W laser

Using Chuangxin’s 20W fiber laser, the spot quality is good, and the output optical power is stable. It can be flexibly applied to metal materials and some non-metal materials.

Playing while charging, the device can be charged while working

The power control design is added, the device can be charged and played while working, realizing continuous work and improving processing efficiency

Unmatched Precision and Speed

The Q8 Model Handheld Laser Marking Machine is the ultimate solution for those who seek precision and speed in their marking needs. With its advanced fiber laser technology, this machine can mark on a wide range of materials with unbeatable accuracy and consistency. The Q8 Model can mark up to 120 characters per second, providing unmatched speed that saves you valuable time and effort.

Versatile Marking Capabilities

This handheld laser marking machine is capable of marking on various surfaces, including metals, plastics, and even some ceramics. Whether you need to engrave serial numbers, barcodes, logos, or other customized graphics, the Q8 Model can do it all. Its compact design allows you to easily move it around and use it on different surfaces and materials.

Easy to Use and Maintain

The Q8 Model Handheld Laser Marking Machine is user-friendly and easy to operate, making it suitable for both novice and expert users. Its software is simple to install and navigate, and it allows you to design and mark your logos and graphics easily. Maintenance is also hassle-free, as the machine is designed to last for many years without requiring frequent repairs.

See for yourself and get a comprehensive test report.

Edit

TECHNICAL SPECIFICATIONS

ModelQ8
Laser parameterLaser source model20M / 30M
Outputpower20W /30W
Beam quality M2≤1.4
Pulse repetition frequency27-60 kHz
Laser wavelength1064±5
Output power stability<3%
Working lifeAbout 100,000 hours(Non-lifetime)
Optical propertiesMarking area75mm
Engraving depth≤1mm
Engraving speed≤10000mm/s
Repeatability±0.002
Min mark line width0. 1mm
Minimum character height0.15mm
Use environmentBattery lifeIt can work for 6-8 hours under normal use in one day
Cooling wayBuilt-in air cooling
System power supply500W / 100-240V / 50/60Hz
Other parametersOperating systemlinux system
File formatThe software supports text, pattern, two-dimensional code, barcode, serial number, graphics and
other marking content (standard USB input)
DimensionControl chassis: 255X135X200 mm Marking head: 258X120X260 mm
Machine weightMachine 6kg, Marking head 1.25kg
Edit

INDUSTRIAL MARKING APPLICATIONS

Q8 is powerful, solid and reliable. The weight of the whole machine is 6 kg, and its marking head is only 1.25 kg. It has an ergonomic grip, which is comfortable to hold and easy to operate.

Rear USB interface, software support: text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content, in addition, Q8 also has a special box that is convenient for storage and can be carried to different places. It is one of the smallest rechargeable laser marking machines on the market!

Iron Marking

Excellent for permanently marking traceable rails, rail couplings, water and steam pipes, handrails, tyres, straps for timber roof trusses and decorative ironwork and a variety of large iron products.

Aluminum Marking

Feel free to hold your device and laser mark auto parts, tent frames, beach chairs, foil balls, computer cases, and anything you can identify as aluminum.
