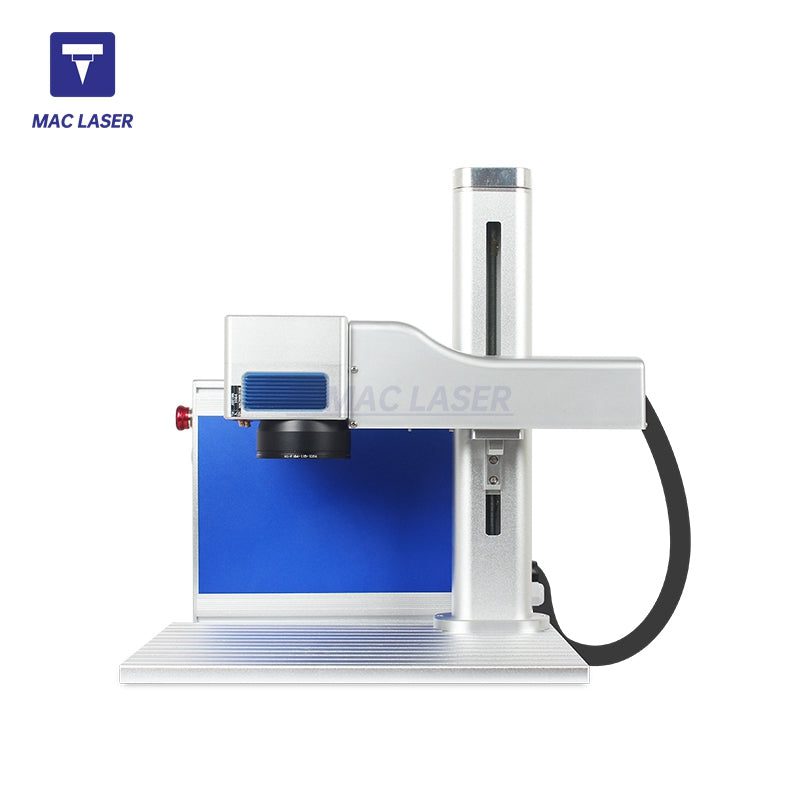

MZF-A Portable Mini Fiber Laser Marking Machine

Discover the MZF-A Portable Mini Fiber Laser Marking Machine – a compact and versatile solution for on-the-go marking applications. Achieve unmatched marking precision on a variety of materials, all while enjoying the unbeatable durability and low cost of ownership of this cutting-edge machine.



Description

Edit

ADVANTAGES OF MZF-A PORTABLE MINI FIBER LASER MARKING MACHINE

High productivity

It can operate efficiently 24 hours a day, improve production efficiency and save costs

Cost-effective

The whole machine is small, flexible, convenient, powerful, and not limited by the use of space

Can be disassembled at will

Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will

High quality light source

Using advanced fiber lasers, the output beam quality is good and the reliability is high

Unmatched Portability for Easy Transportation and Use

The MZF-A Portable Mini Fiber Laser Marking Machine is a cutting-edge solution for marking a variety of materials on-the-go. With its compact and lightweight design, this machine is easy to transport and set up, making it perfect for mobile marking applications. You can take it to trade shows, job sites, or anywhere else you need to mark your products quickly and efficiently.

Superior Marking Precision for a Wide Range of Materials

This fiber laser marking machine is equipped with advanced laser technology that delivers exceptional marking precision on a variety of metal materials. Whether you’re marking logos, barcodes, or other identifying information, the MZF-A Portable Mini Fiber Laser Marking Machine ensures crisp, clear results every time.

Unbeatable Durability and Longevity for Low Cost of Ownership

The MZF-A Portable Mini Fiber Laser Marking Machine is built to last, with a rugged construction that can withstand the demands of even the most challenging marking applications. Its high-quality components ensure long-lasting performance, while its low-maintenance design keeps operating costs low. With the MZF-A Portable Mini Fiber Laser Marking Machine, you can expect years of reliable marking performance.

See for yourself and get a comprehensive test report.

Edit

TECHNICAL SPECIFICATIONS

Model seriesIntelligent mini laser marking machine
ModelMZF-20DMZF-30D
Laser parametersLaser source modelMFP-20X/20QSMFP-30X/30QS
Output Power18.5/20W30W
Beam quality M2≤1.4≤1.4
Pulse repetition frequency27-60 kHz30-60 kHz
Laser wavelength1064±5 nm
Output power stability<3%
Working lifeAbout 100,000 working hours (non-lifetime)
Optical propertiesMarking range100~150mm (range optional)
Engraving depth≤1mm (depending on power and time)
Engraving speed≤10000mm/s
Repeat accuracy±0.002
Minimum marking line width0. 1mm
Minimum character height0.15mm
Use environmentCooling wayBuilt-in air cooling
System power supply500W / 220V / 50Hz (110V can be connected)
Temperature humidity0~40°, 30% RH 85%, air conditioner should be installed when used outside the range
Oil mist, condensationNot allowed
Other parametersSupport systemWindows operating system

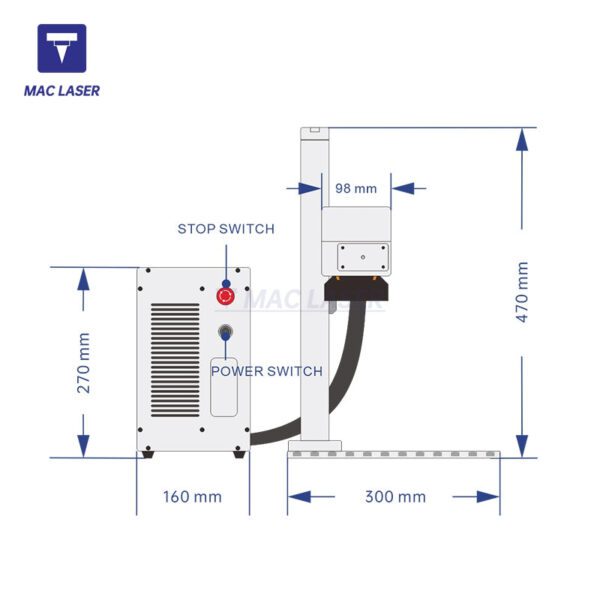

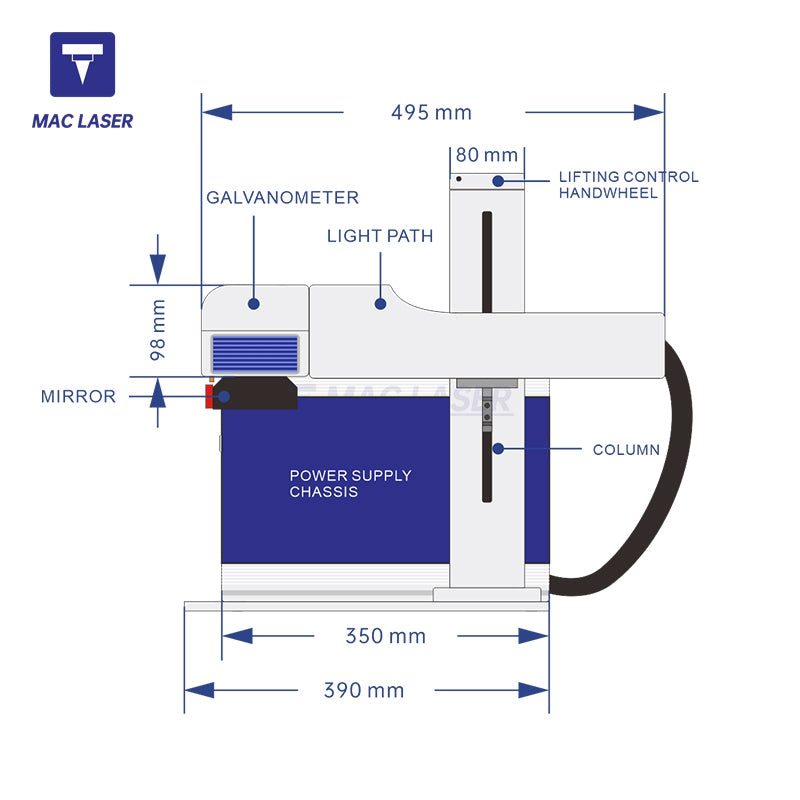

Dimensions390X210X615 mm
Packing size680X5500X270 mm
Total WeightAbout 20kg
Edit

INDUSTRIAL MARKING APPLICATIONS

MZF-A series mini laser marking machine belongs to desktop fifiber laser marking equipment, which is an

economical model specially developed by Mac Laser to meet the needs of simple, compact, flflexible and

convenient equipment. This model has the advantages of economical and affordable, high cost

performance (computer is not included, you need to confifigure your own computer to use), the whole

machine is small and easy to carry. It can easily meet most common laser marking applications.

The MZF-A series products use a 1064nm wavelength fifiber laser source, which is suitable for various metal

materials such as iron, copper and aluminum, gold, silver, and some non-metal materials such as PC, ABS,

PVC, and PC+ABS.
