MQLF-JM Pulse Desktop Laser Marking Machine

The MQLF-JM Pulse Desktop Laser Marking Machine is a top-of-the-line laser marking solution that offers precision and durability. With its advanced fiber laser technology, this machine can mark on a variety of metal materials. It is designed to be user-friendly and low maintenance, making it an ideal choice for businesses that want hassle-free marking equipment.

Description

Edit

ADVANTAGES OF MQLF-JM PULSE LASER FIBER MARKING MACHINE

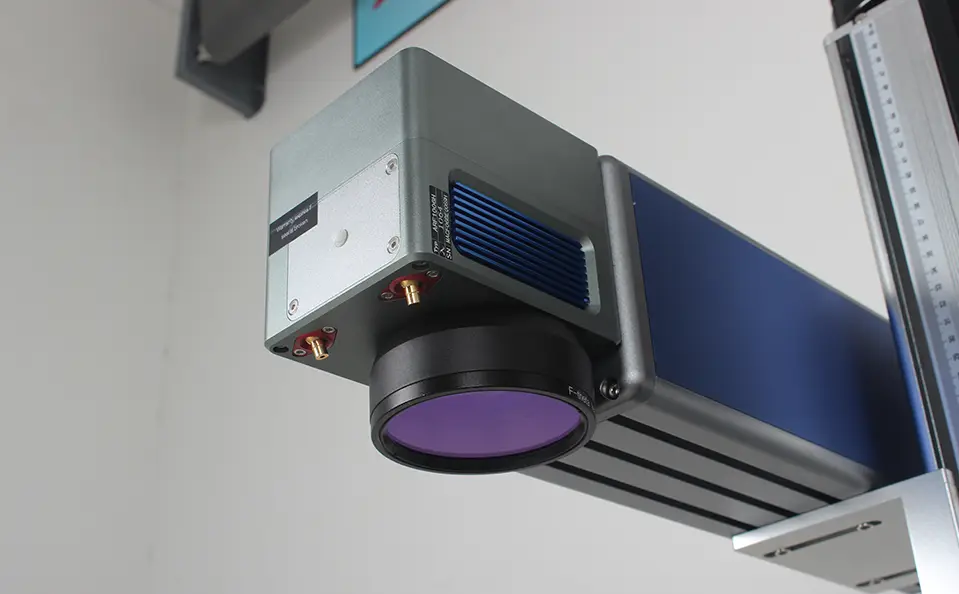

Double red light metal galvanometer

Metal body structure, built-in double red light marking indicator, has the advantages of no adjustment, no maintenance, high stability, and can upgrade the high-speed digital scanning galvanometer

Cost-effective

The whole machine is small, flexible, convenient, powerful, and not limited by the use of space

Can be disassembled at will

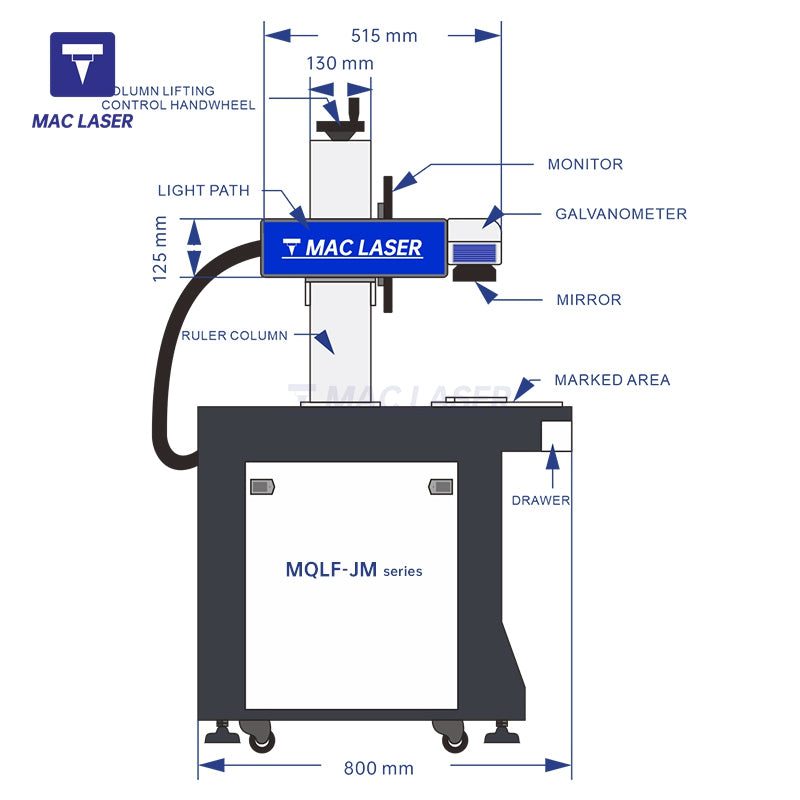

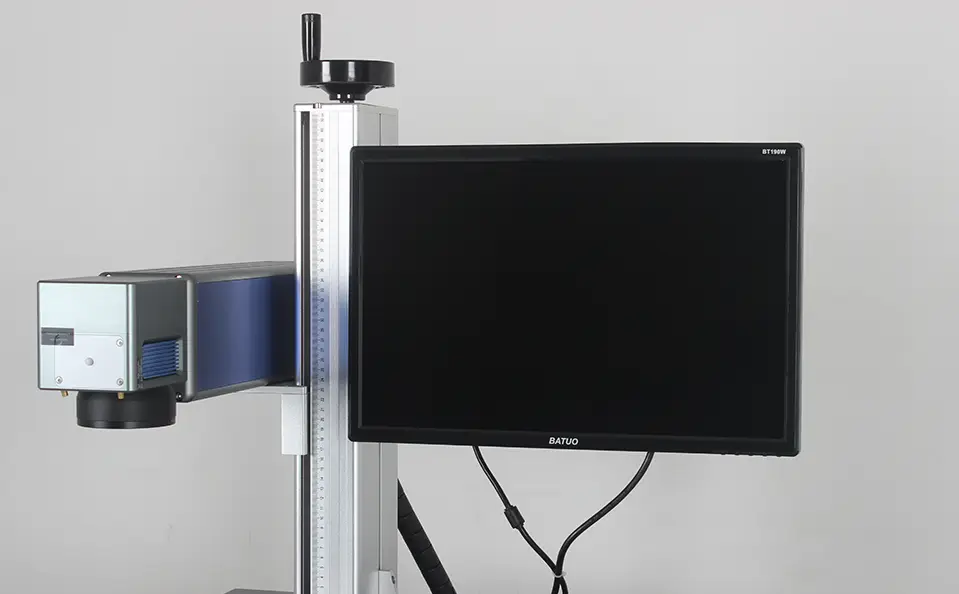

Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will

High quality light source

Using advanced fiber lasers, the output beam quality is good and the reliability is high

Precise and Quick Laser Marking

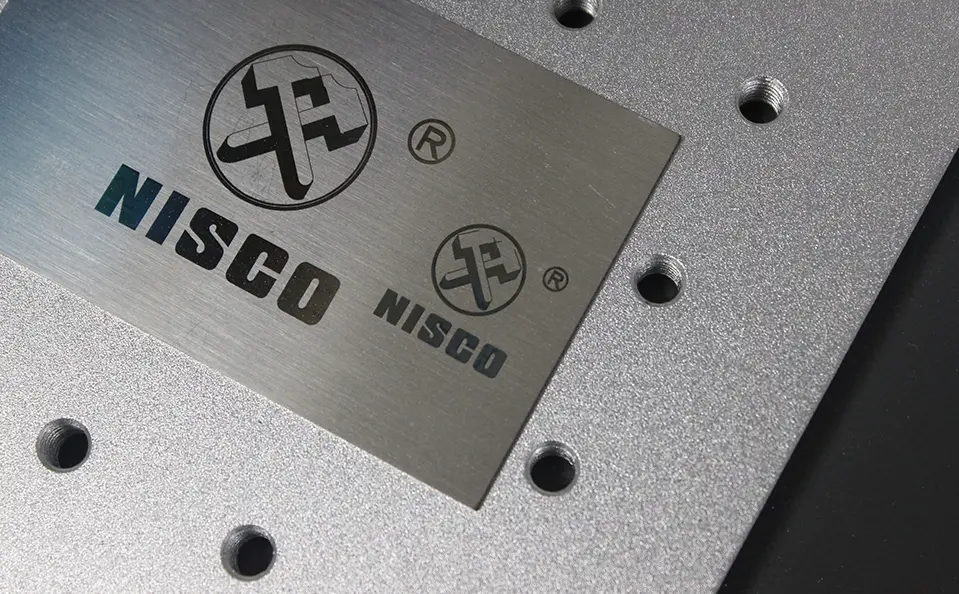

The MQLF-JM Pulse Desktop Laser Marking Machine is a top-of-the-line product that offers the most precise and quick laser marking solutions. With its high-quality laser beam and advanced technology, this machine can mark on a variety of materials, including metal, plastic, and ceramic. Whether you need to mark serial numbers, barcodes, or logos, the MQLF-JM Pulse Laser Fiber Marking Machine can do it all with precision and accuracy.

Easy to Use and Low Maintenance

The MQLF-JM Pulse Desktop Laser Marking Machine is designed to be user-friendly and easy to operate. With its intuitive interface and simple controls, anyone can quickly learn how to use this machine. In addition, the machine is low maintenance, which means that you won’t have to spend a lot of time and money on repairs and upkeep. This makes it an ideal choice for businesses that want a reliable and hassle-free laser marking solution.

Versatile and Durable

The MQLF-JM Pulse Desktop Laser Marking Machine is a versatile and durable product that can meet the needs of any business. Its compact design makes it easy to integrate into any production line, while its sturdy construction ensures that it can withstand the wear and tear of daily use. Additionally, this machine is compatible with a wide range of software and can be customized to suit your specific marking needs.

See for yourself and get a comprehensive test report.

Edit

TECHNICAL SPECIFICATIONS

ModelMQLF-20CMMQLF-30CMMQLF-50CMMQLF-70CMMQLF-100CMMQLF-120CMMQLF-150CMMQLF-200CM
Laser parametersLaser sourcemodelMFPT-20SMFPT-30SMFPT-50SMFPT-70MMFPT-100M+MFPT-120M+MFPT-150M+MFPT-200M+
Output Power20W30W50W70W100±5W120±5W150±5W200±5W
Beam quality M2≤1.3≤1.3≤1.4≤1.5≤1.6≤1.6≤1.6≤1.6
Pulse repetition frequency1-4000 kHz
Laser wavelength1066±3 nm
Pulse width adjustable range2-350 ns2-500 ns10-500 ns
Output power stability<5%
Working lifeAbout 100,000 working hours (non-service life)
Optical propertiesMarking range100 ~ 300mm (optional range)
Marking depth≤ 1 mm(depending on power and time)
Marking speed≤ 10000 mm/s
Repetition accuracy±0.002
Minimum line width0. 1mm
Minimum character height0.15mm
EnvironmentCooling modeBuilt-in air cooling
System power supply500W/220V/50Hz (110V can be connected)
Temperature, humidity0 ~ 40 °, 30% RH 85%, air conditioner shall be installed when it is used beyond the range
Oil mistNot Allowed
Other arametersOperating SystemWindows Operating System
File FormatAll fonts/fonts in the WINDOWS operating system font library (standard USBinput)

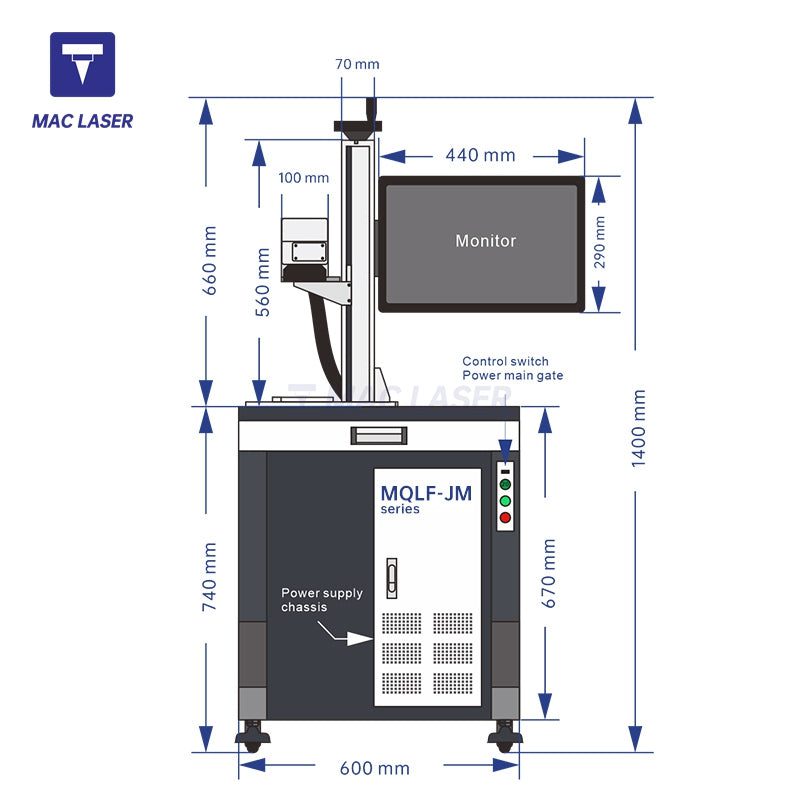

Exterior dimension800X600X1400 mm
Packing size860X730X1050 mm
Weight of the whole machineAbout 75kg
Edit

INDUSTRIAL MARKING APPLICATIONS
