Description
Product Description
The MQC series CO2 laser marking machine of Mac Laser is a gas laser machine, which produces a wavelength of 10.6um, which belongs to the mid-infrared frequency band. The CO2 laser machine has larger power and higher electro-optical conversion efficiency. At present, it is mainly used for marking most non-metallic materials.
MQC CO2 series products are widely used in the marking and cutting of graphics and text in clothing accessories, leather bags, food and beverage packaging, wood furniture, electronic components, handicraft processing, electrical equipment, glass and stone processing and other fields. Such as bamboo and wood products, plastic products, glass ceramics, paper packaging, label paper, leather fabrics, resin plastics, PCB boards, etc.
>> Use high-quality CO2 radio frequency laser;
>> High-quality laser source components, good optical mode;
>> Long-term running system performance is stable;
>> Integrated overall design, compact structure and stable performance.
Product Parameter

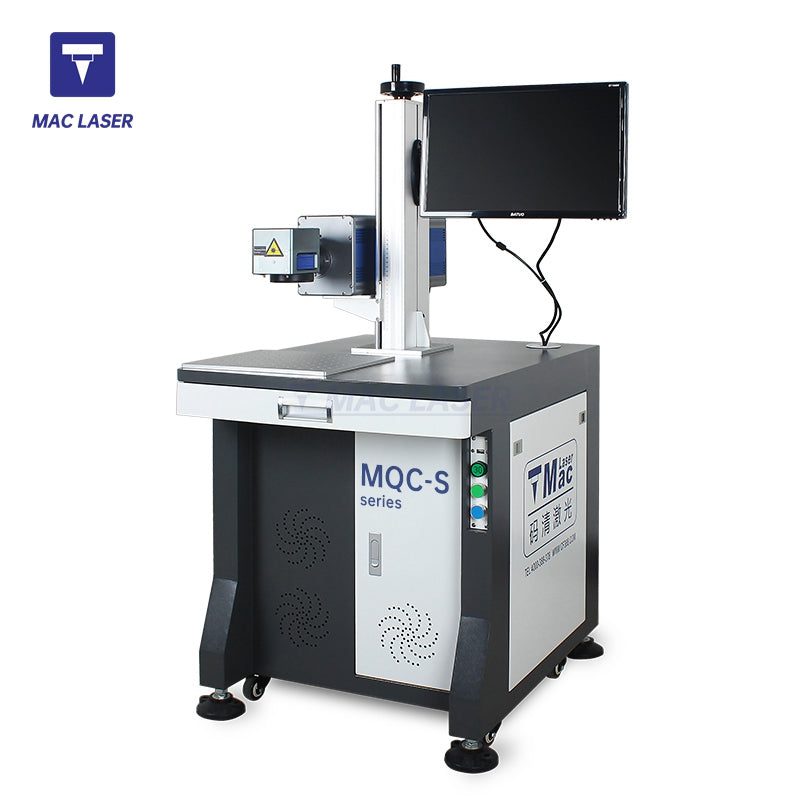

The MQC-S sub-series adopts the CO2 radio frequency laser of Synrad laser. It adopts all-metal sealing design and exclusive manufacturing method to ensure the purity of the gas and essentially extend the working life. The laser tube has a sturdy cavity design. It provides an ultra-stable platform for the laser resonator to ensure that the laser can adapt to the harsh working environment of modern industry.
| Model series | MQC-S sub-series（SYNRAD laser source） | ||||
| Model | MQC-15S | MQC-35S | MQC-36S | MQC-65S | MQC-66S |
| Laser source model | 48-1 | Vi30 | Vi30-9.3/10.2 | Ti60 | Ti60-9.3/10.2 |
| Output Power | 10W | 40W | 30W | 80W | 65W |
| Beam quality M² | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.3 | ≤1.3 |
| Laser wavelength | 10.6 um | 10.6 um | 9.3 / 10.2 um | 10.6 um | 9.3 / 10.2 um |
| Pulse frequency | 0-25 kHz | 0-100 kHz | 0-100 kHz | 0-160 kHz | 0-160 kHz |
| Exit beam diameter | 3.5mm | 2.5±0.5 mm | 2.5±0.5 mm | 2.2±0.3 mm | 2.2±0.3 mm |
| Output power stability | ±10% | ±5% | ±5% | ±7% | ±7% |
| Working life | About 20,000 hours | ||||
| Marking range | 100~300mm (range optional) | ||||
| Engraving depth | ≤1mm (depending on power and time) | ||||
| Engraving speed | ≤10000mm/s | ||||
| Repeat accuracy | ±0.002 | ||||
| Minimum marking line width | 0. 1mm | ||||
| Minimum character height | 0.15mm | ||||
| Cooling way | Standard Built-in air cooling (Water cooling can be customized) | ||||
| System power supply | 500W / 220V / 50Hz（(Can be connected to 110V) | ||||
| Temperature humidity | 5~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range | ||||
| Oil mist, condensation | Not allowed | ||||
| Operating system | Windows operating system | ||||
| File format | All fonts/types of WINDOWS operating system font library (standard USB input) ) | ||||

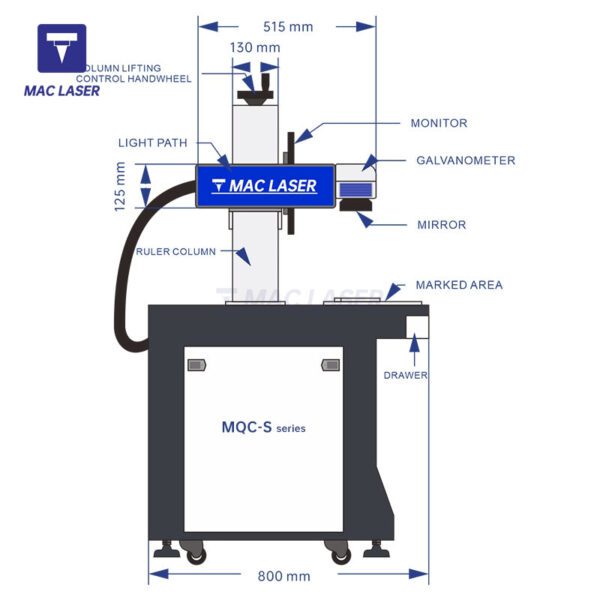

| Dimension | 850X600X1400 mm | ||||
| Packing dimension | 860X730X1050 mm | ||||
| Total Weight | About 80kg | ||||
