Product Description

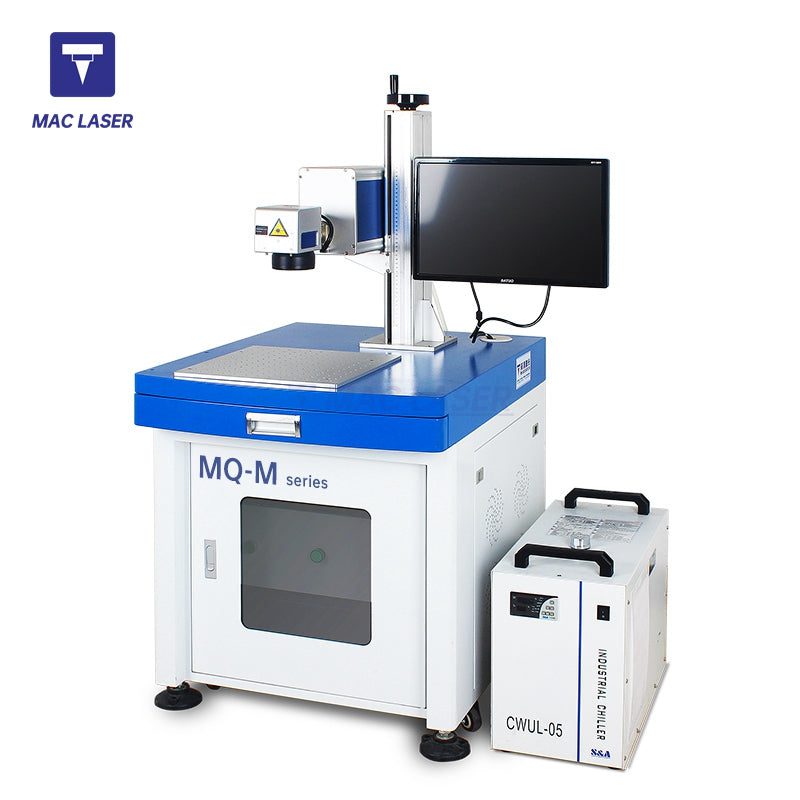

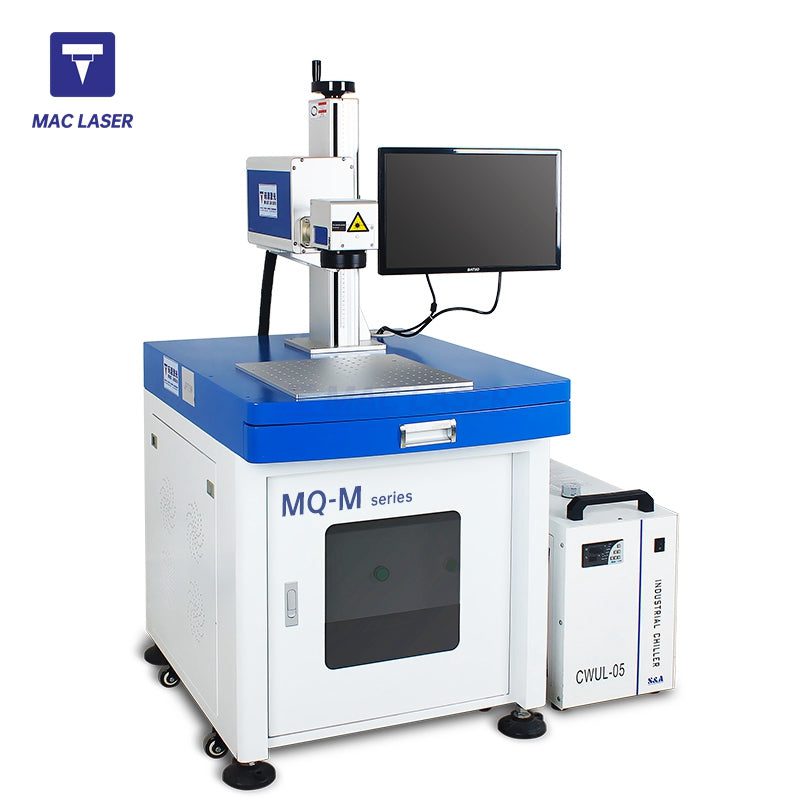

The MQ series ultraviolet laser marking machine of Mac Laser is developed by using a 355nm ultraviolet laser. The material has a high absorption rate of ultraviolet light and has a wider range of material adaptability. Ultraviolet light focusing spot is very small, processing heat-affected zone is very small and it is more suitable for ultra-fine marking of various materials.
MQ series ultraviolet laser marking machine is used in the high-end market of ultra-fine processing, perfect cutting and micro-processing. It is mainly used for marking and surface treatment of materials like various glass, LCD screens, textiles, thin ceramics, semiconductor wafers, IC grains, sapphire, polymer films, etc.
>> The output laser spot is small and the marking line is thin, which is more suitable for some finer graphic marks;
>> The laser beam is in good quality and the output laser has high stability, which brings users an exquisite and beautiful marking effect;
>> High laser frequency, faster marking speed;
>> The whole machine has stable performance, small size and low power consumption.
Product Parameter
The MQ-M sub-series uses CRS Laser’s pulsed ultraviolet laser source, it adopts advanced resonator design and laser control technology to achieve excellent beam quality and narrow laser pulse width under high power operation. Special intracavity thermal compensation technology and harmonic conversion technology realize efficient and stable frequency multiplication conversion.
| Model series | MQ-M sub-series (CRS laser source / Maiman laser source) | |||||
| Model | MQ3M | MQ5M | MQ8M | MQ10M | MQ15M | M20M |
| Laser source model | 355-3 | 355-5 | 355-8 | 355-10 | 355-15 | 355-20 |
| Output Power | 3W | 5W | 8W | 10W | 15W | 20W |
| Beam quality M² | CRS ＜1.2 / Maiman ＜1.3 | |||||
| Laser wavelength | 355 nm | |||||
| Pulse frequency | CRS 10-200 kHz / Maiman 30-500 kHz | |||||
| Output beam diameter | 0.8 mm | |||||
| Output power stability | ≤3% | |||||
| Working life | About 20,000 hours | |||||
| Marking range | 100~300mm (range optional) | |||||
| Engraving depth | ≤1mm (depending on power and time) | |||||
| Engraving speed | ≤10000mm/s | |||||
| Repeat accuracy | ±0.002 | |||||
| Minimum marking line width | 0. 01mm | |||||
| Minimum character height | 0.03mm | |||||
| Cooling way | External water cooling | |||||
| System power supply | 500W / 220V / 50Hz (110V can be connected) | |||||
| Temperature humidity | 5~35°，30%≤RH≤85% | |||||
| Oil mist, condensation | Not allowed | |||||
| Operating system | Windows operating system | |||||
| File format | All fonts/types of WINDOWS operating system font library (standard USB input) | |||||

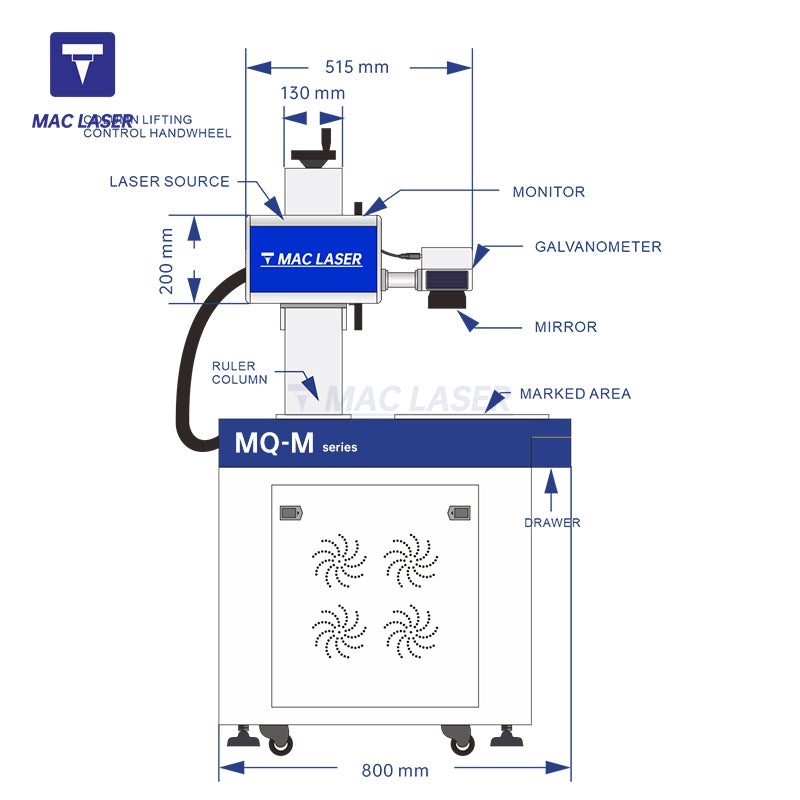

| Dimensions | 800X660X1425 mm | |||||
| Packing size | 860X730X1050 mm | |||||
| Total Weight | About 100kg | |||||
Application field
