China’s Top Laser Equipment Manufacturer

fiber laser marking machine for 20w

KX-K-laser-marking3

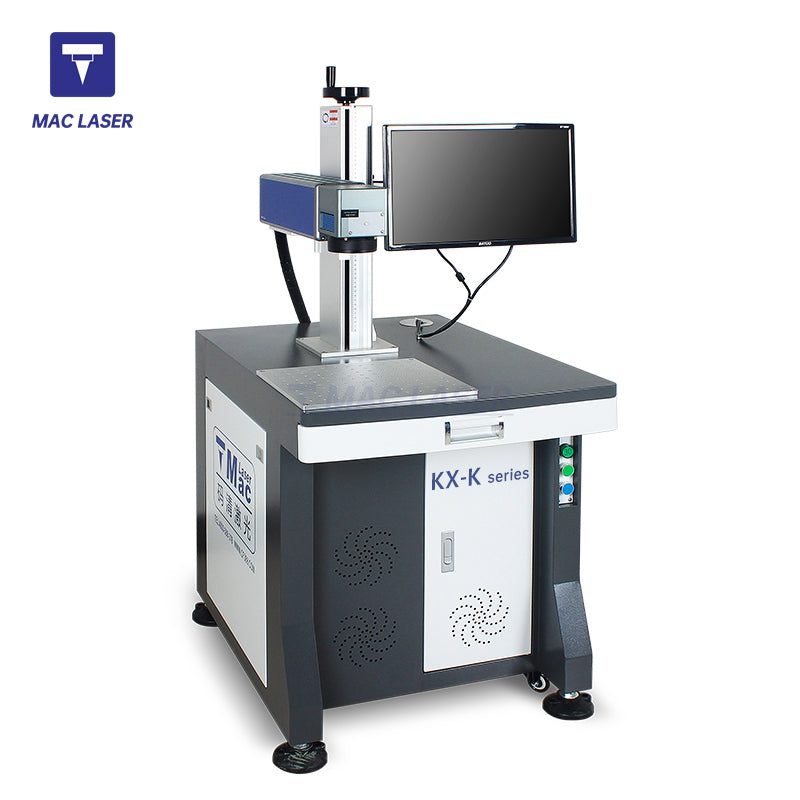

KX-K Pulse 20w Fiber Laser Marking Machine

The KX-K Pulse 20w Fiber Laser Marking Machine is a reliable and high-quality laser marking solution for industrial marking needs. It utilizes advanced fiber laser technology to deliver precise and efficient markings on various materials, including metals and plastics. With a rapid marking speed of up to 10000 mm/s, it is designed for maximum speed and efficiency. Plus, it is versatile and durable enough to handle even the toughest industrial environments.

Description
Documents

Description

Edit

ADVANTAGES OF KX-K PULSE 20W FIBER LASER MARKING MACHINE

Double red light metal galvanometer

Metal body structure, built-in double red light marking indicator, has the advantages of no adjustment, no maintenance, high stability, and can upgrade the high-speed digital scanning galvanometer

Cost-effective

The whole machine is small, flexible, convenient, powerful, and not limited by the use of space

Can be disassembled at will

Compact design, the whole machine is small and portable, and the optical path of the column can be disassembled at will

High quality light source

Using advanced fiber lasers, the output beam quality is good and the reliability is high

Precision and Accuracy

With the KX-K Pulse 20w Fiber Laser Marking Machine, you can achieve unparalleled precision and accuracy in your marking projects. Our machine utilizes advanced fiber laser technology to deliver crisp, clean lines and accurate markings, even on the smallest and most intricate details. Whether you need to mark serial numbers, barcodes, logos, or other designs, the KX-K Pulse 20w Fiber Laser Marking Machine can handle it all with ease.

Speed and Efficiency

When it comes to industrial marking, time is money. That’s why the KX-K Pulse 20w Fiber Laser Marking Machine is designed for maximum speed and efficiency. With a rapid marking speed of up to 10000mm/s, our machine can quickly and easily mark large volumes of products with consistent quality and accuracy. Plus, with its user-friendly interface and intuitive controls, you can set up and start marking in minutes, saving you time and increasing your productivity.

Versatility and Durability

The KX-K Pulse 20w Fiber Laser Marking Machine is built to last, with a rugged and durable construction that can withstand even the toughest industrial environments. Plus, it’s versatile enough to handle a wide range of materials, including metals, plastics, and more. Whether you need to mark stainless steel parts for the aerospace industry, plastic components for the automotive industry, or any other type of material, the KX-K Pulse 20w Fiber Laser Marking Machine is up to the task.

Get Your Samples Marked

See for yourself and get a comprehensive test report.

Edit

TECHNICAL SPECIFICATIONS

DOWNLOAD FLEX SPEC SHEET

Model		KX-200K	KX-201K	KX-300K	KX-301K	KX-500k	KX-600k	KX-700k	KX-1000K
Laser parameters	Laser Model	RFL-P20QS	RFL-P20QE	RFL-P30QS	S RFL-P30Q	RFL-P50QB	RFL-P60Q	RFL-P70Q	RFL-P100Q
	Output Power	20W	20W	30W	30W	50W	60W	70W	100W
	Beam quality M2	≤1.5	≤1.5	≤1.6	≤1.5	≤1.6	≤1.6	≤1.6	≤1.6
	Pulse repetition frequency	40-60 kHz	30-60 kHz	40-60 kHz	30-60 kHz	50-100 kHz	55-100 kHz	20-400 kHz	20-200 kHz
	Laser wavelength	1064 ± 5
	Output power stability	< 3%							< 5%
	Design Life	Approximately 100,000 working hours (Non-lifetime )
Optical properties	Marking range	100 ~ 300mm (optional range)
	Marking depth	1 mm (depending on power and time)
	Marking speed	10000 mm/s
	Repetition accuracy	± 0. 002
	Minimum line width	0.1 mm
	Minimum character height	0.15 mm
Use environment	Cooling mode	Built-in air cooling
	System power supply	500W/220V/50Hz (110V can be connected)
	Temperature, humidity	0 ~ 40 °, 30% RH 85%, air conditioner shall be installed when it is used beyond the range
	Oil mist	Not Allowed
Additional Parameters	Operating System	Windows Operating System
	File Format	All fonts/fonts in the WINDOWS operating system font library (standard USB input)

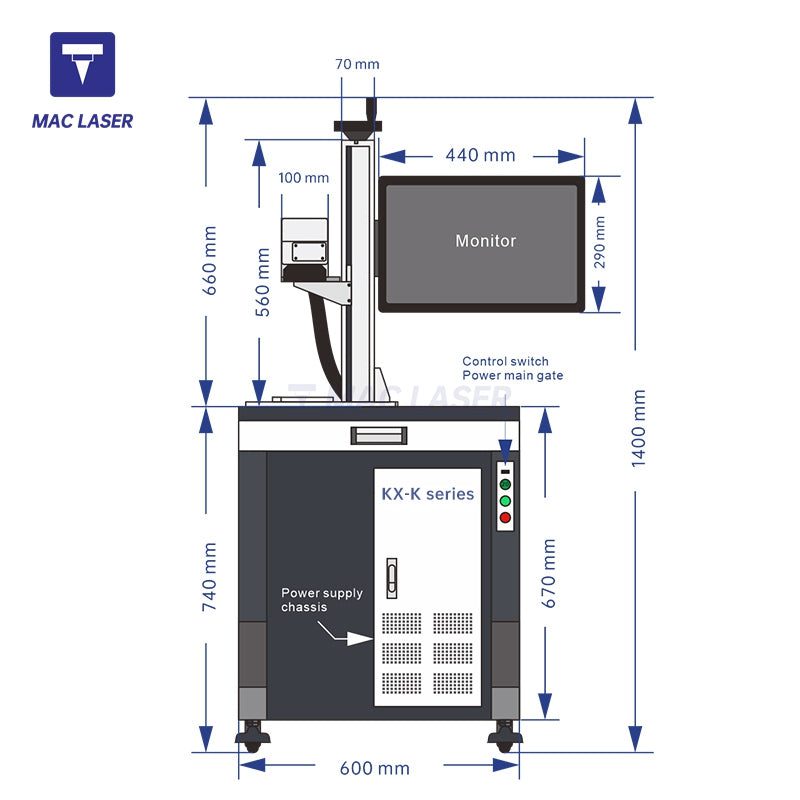

	Exterior dimension	800X600X1400 mm
	Packing size	860X730X1050 mm
	Weight of the whole machine	About 75kg

DOWNLOAD FLEX SPEC SHEET

Edit

INDUSTRIAL MARKING APPLICATIONS

The KX series fifiber laser marking machine of Mac Laser is an all-round marking equipment. Because of its strong

adaptability, low maintenance and no consumables during the marking process, it is often used in the metal and plastic

processing industries.

Fiber series products use 1064nm wavelength laser, which is suitable for various metal materials such as iron, copper,

aluminum, gold, silver, and some non-metal materials such as PC, ABS, PVC, PC+ABS. It is widely used in 3C, auto parts,

electronic components, integrated circuits (PC), electrical appliances, precision equipment, hardware products, building

materials, clocks and watches, jewelry, craft gifts and other industries.
