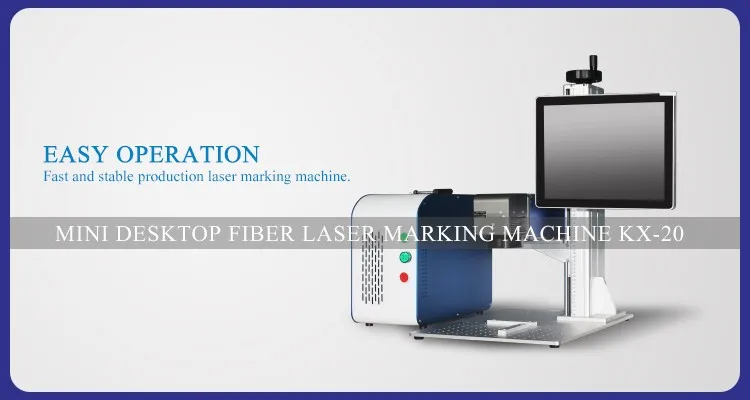

MAC Desktop Mini Size Fiber laser marking machine laser engraving logo marking on stainless steel and plastic
Automated intelligent processing, high performance, highly efficient and stable marking.
Desktop Fiber Laser Marking Machine is an upgraded product of Mac.Advanced technology of it perfectly shows the technological concept of Mac.At the same time,it’s a revolutionary creation in laser marking system of working speed,high-definition resolution, high intelligence.
|
Technical Parameter
|
|||
|
Laser source
|
MAX
|
||
|
Power
|
20W
|
||
|
Laser wavelength
|
1050-1070nm
|
||
|
Repetition frequency
|
20-80KHZ
|
||
|
TEMOO Gaussian beam
|
<2
|
||
|
Marking range
|
100*100mm 200*200mm 300*300mm
|
||
|
Marking depth
|
≤0.4mm
|
||
|
Marking speed
|
≤10000mm/s
|
||
|
Minimum linewidth
|
0.01mm
|
||
|
Minimum character
|
0.15mm
|
||
|
Repeat accuracy
|
±0.002
|
||
|
Power supply
|
110/220V,50/60Hz
|
||
|
Power consumption
|
500W
|
||
|
Dimension
|
55*40*65cm(Holder) 20*45*35cm(Cabinet)
|
||
|
Total weight
|
About 40kg
|
||
|
Operating system
|
Win 7 32bits
|
||
|
Cooling
|
Built- in air cooling
|
||
|
Control interface
|
Standard USB
|
||
|
File format
|
All the characters/ fonts of WINDOWS operating system
|
||
|
Laser device type
|
Impulse fiber laser device
|
||
|
Working life
|
100,000 hours
|
||
Main Features
1) Latest design,the most advance solid fiber laser,high quality laser beam.
2) Fast working speed,high efficiency.
3) Integrated design,small bulk,suitable for various occasions.
4) Maintenance-free,no consumption, energy-saving power.
5) Perfect marking logo,never fade.
Application
With various power and frequency, it applys to a variety of metallic and part of non-metallic materials marking.Such as two-dimensional codes, bar codes, graphics, text, shift, serial number, date, etc.This technology can be used in the following sample fields.
|
configuration
|
Name
|
Description
|
|
|
Laser source
|
MAX (20W)
|
||
|
Focusing system
|
Double red light focusing system
|
||
|
Marking indicating system
|
Built-in contour, size, orientation, position indicator
|
||
|
Lens system
|
Import wavelength, a full range of chipsets
|
||
|
Cooling system
|
Air cooling
|
||
|
Laser galvo
|
Integrated optical bench design, professional digital galvanometer, high speed galvo
|
||
|
Professional laser control card
|
Static most professional marking software
|
||
|
Computer
|
14 inches NoteBook Computer
|
||
|
Bracket
|
Built-in lifting bracket
|
||
MAX Laser Source
Brand: MAX
Original: China
MAX is the best laser source in China,advantages include long working life,high electro-optical conversion efficiency, good beam quality, no consumption, maintenance-free,etc.
Double red light speed digital galvanometer
Brand: SCANLAB
Original: Double
New Germany high-speed scanning galvanometer, reliable quality, beautiful appearance, built-in double red light focusing marking instructions. Features include compact and flexible, adjustment-free, maintenance-free, high stability advantages.
NoteBook Computer
Brand: MAC
Original: China
Laptop similar structure, the main advantage of small volume, light weight, easy to carry, go out to work or travel, portable, very convenient.
The most professional marking software
Brand: MAC
Original: China
Mac Laser originally developed laser marking software, can control the size of power marking machine, marking meet the requirements to support the rotating work platform, it is one of the most advanced marking software.
Introduction to the
Guangzhou Mac Laser Marking Co.,Ltd. is a famous new high technology enterprise which manufactures and sells marking machines and it s one of the earliest company researched and developed marking machine in China. Our company is now one of the few suppliers in China that can provide full set marking machines. A variety of marking machines of Guangzhou Mac is popular and our main products include pneumatic dot pin marker, laser marking machine, nameplate marker, electric scriber, electrochemical marking machine, metal carving machine etc.. After many years effort, we have become the leading enterprise in the marking industry and have manufactured marking machines for many marking machine companies at home and abroad.
